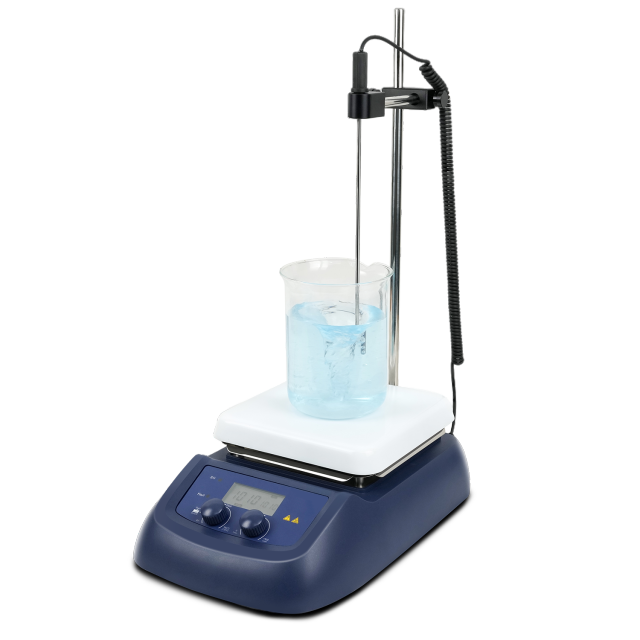

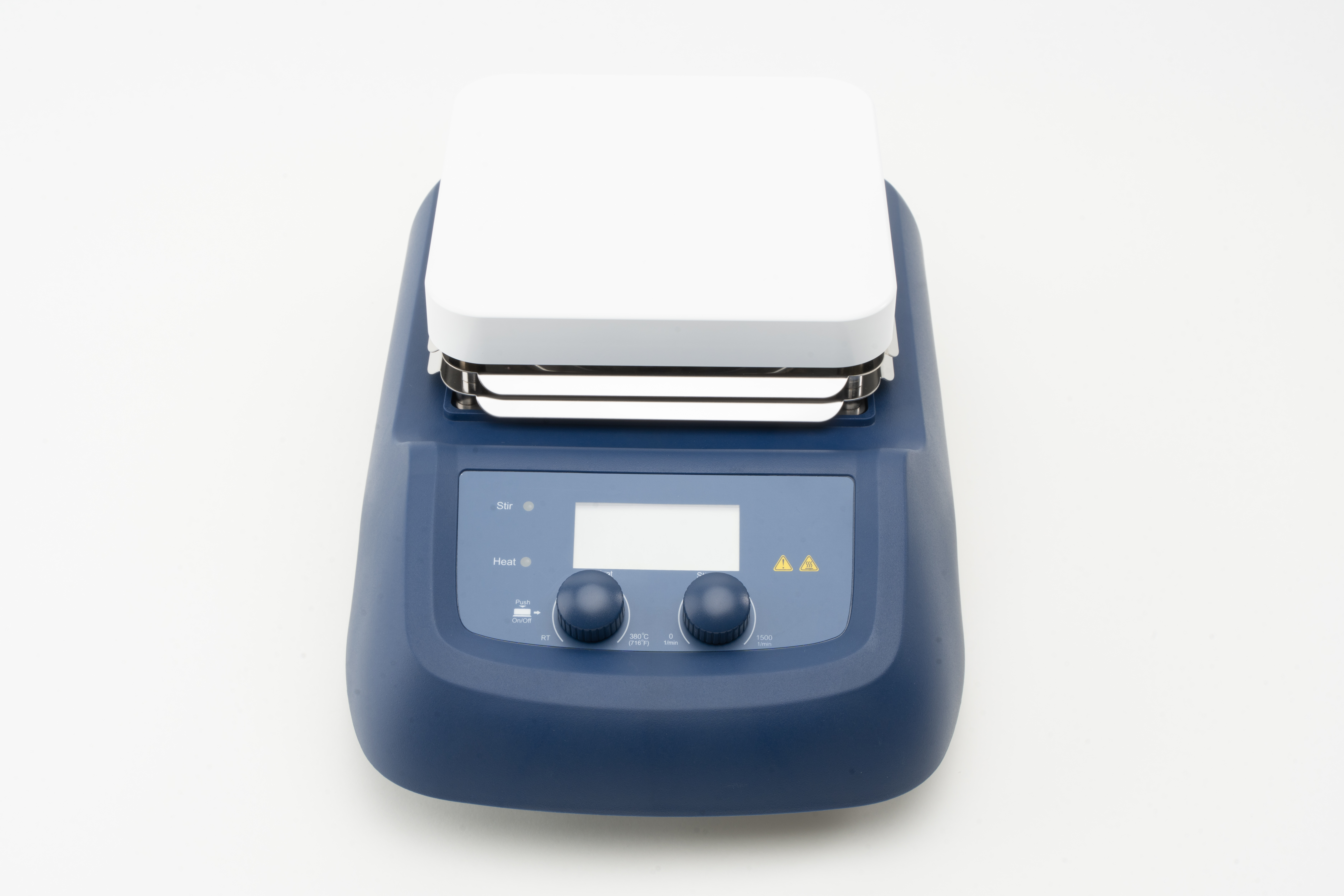

Name: LCD Digital Magnetic
Brand: Uyira: Your Strategic Sourcing Partner in China for Life Sciences & Me
SKU: MS7-H380-E
Availability: InStock
Rating: 5 (1 reviews)

Description

Maximum heating temperature of 380℃ ,maximum stirring speed of 1500rpm, and maximum stirring volume of 20L [H2O]

Aluminum cover with ceramic coating

Residual heat warning function

Features

Aluminum cover with ceramic coating, strong corrosion resistance, easy toclean.Efficient diversion platform and slope to prevent liquids from entering the machine and corroding electronic components.
Maximum heating temperature of 380℃ ,maximum stirring speed of 1500rpm, and maximum stirring volume of 20L [H2O].
LCD displays speed, time, and temperature parameters clearly and intuitively.
Can be connected to an external temperature sensor PT1000 for precise control of sample temperature.
Protection features: dry burn protection,overcurrent protection, ground fault protection, and overtemperatureprotection.
Residual heat warning function: when the disc surface temperature exceeds 50℃ , heating will shut off, and the screen will flash “HOT” as a reminder of the high temperature, even if the power is turned off, the display will still flash“HOT.”

Specifications

Work plate dimension	184×184mm
Work plate material	Aluminum cover with ceramic coating
Motor type	DC brush motor
Stirring positions	1
Max. stirring quantity (H₂O)	20L
Max. magnetic bar [length]	80×10mm
Speed range	80-1500rpm
Speed display	LCD
Display resolution	1rpm
Heating temperature range	Room Temp. - 380°C, increment 1°C
Temperature display resolution	±0.1°C
Heating liquid temperature control accuracy	±1°C(<100°C) ±1%(>100°C)
Overheating temperature protection	410°C
External temperature sensor	PT1000
External temperature sensor accuracy	PT1000 (accuracy±0.2°C)
Power	900W
Voltage, Frequency	100-120V,60Hz; 200-240V,50Hz
"Hot" warning	50°C
Protection class	IP21
Dimension [W×D×H]	366×240×126mm
Weight	3.5Kg
Permissible ambient temperature and humidity	5-40°C, 80%RH
