Ultra-flat Compact Magnetic Stirrer

With excellent stirring functionality, the compact shape of FlatSpintakes less bench space and makes storage easier.
  • Ultra-flat Compact Magnetic Stirrer
  • Ultra-flat Compact Magnetic Stirrer
  • Ultra-flat Compact Magnetic Stirrer

Description

FlatSpin
Uitra-flat Compact Magnetic Stirrer
With excellent stirring functionality, the compact shape of FlatSpintakes less bench space and makes storage easier.

Features
Speed range 15 to 1500rpmAutomatic reverse rotation for excellentmixingPET top work plate provides excellentchemical resistance Motorless technology provides ultrasilent and vibration-free operationPerfect magnetic stirrer for use duringtitration (bottle-top burette) in analyticalchemistry

Specification
Specification FlatSpin Details
Work plate Dimension Ø90mm
Work plate material PET
Stirring positions 1
Max. stirring quantity[H₂O] 0.8L
Max.magnetic bar[length] 40mm
Speed range 15-1500rpm
Protection class IP21
Output Power 3W
Power 5W
Voltage,Frequency 100-240V, 50/60Hz
Dimension[WxDxH] 175x120x15mm
Weight 0.3kg
Permissible ambient temperature and humidity 5-40℃, 80%RH

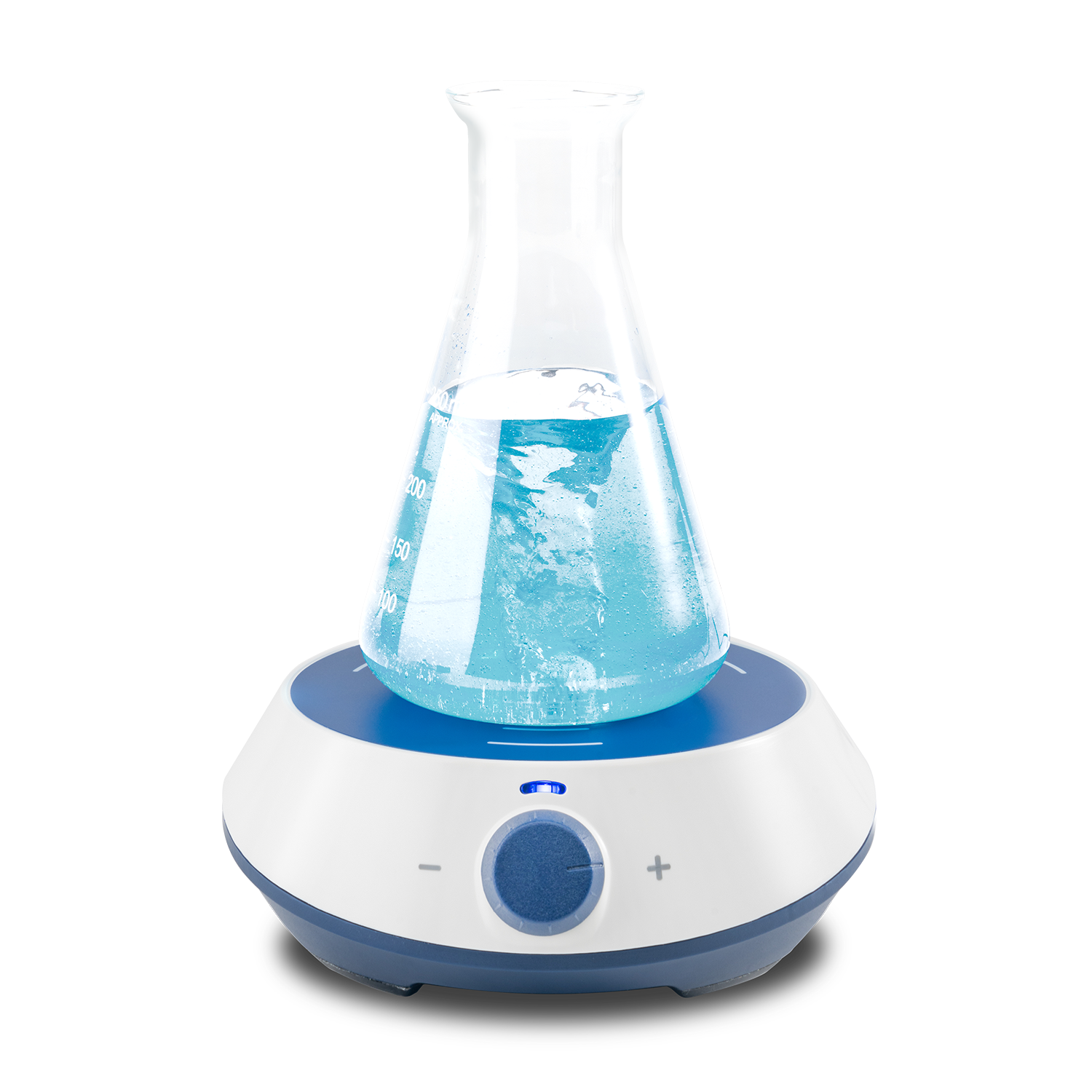

EcoStir
Economical Maynetie Stirrer
EcoStiris a magnetic stirrer customized for liquid mixing, suitable forchemical analysis, biology reagent mixing, regular laboratoryexperiments and liquid handling.Features
Maintenance free brushless DC motor
Rare earth magnets give powerful stirringStepless speed regulation 300-2000rpmUltra silence and vibration-free designPET top provides excellent chemical resistance Shaft can be fitted with a pH sensor or other sensors for differentpurposes


EcoStir

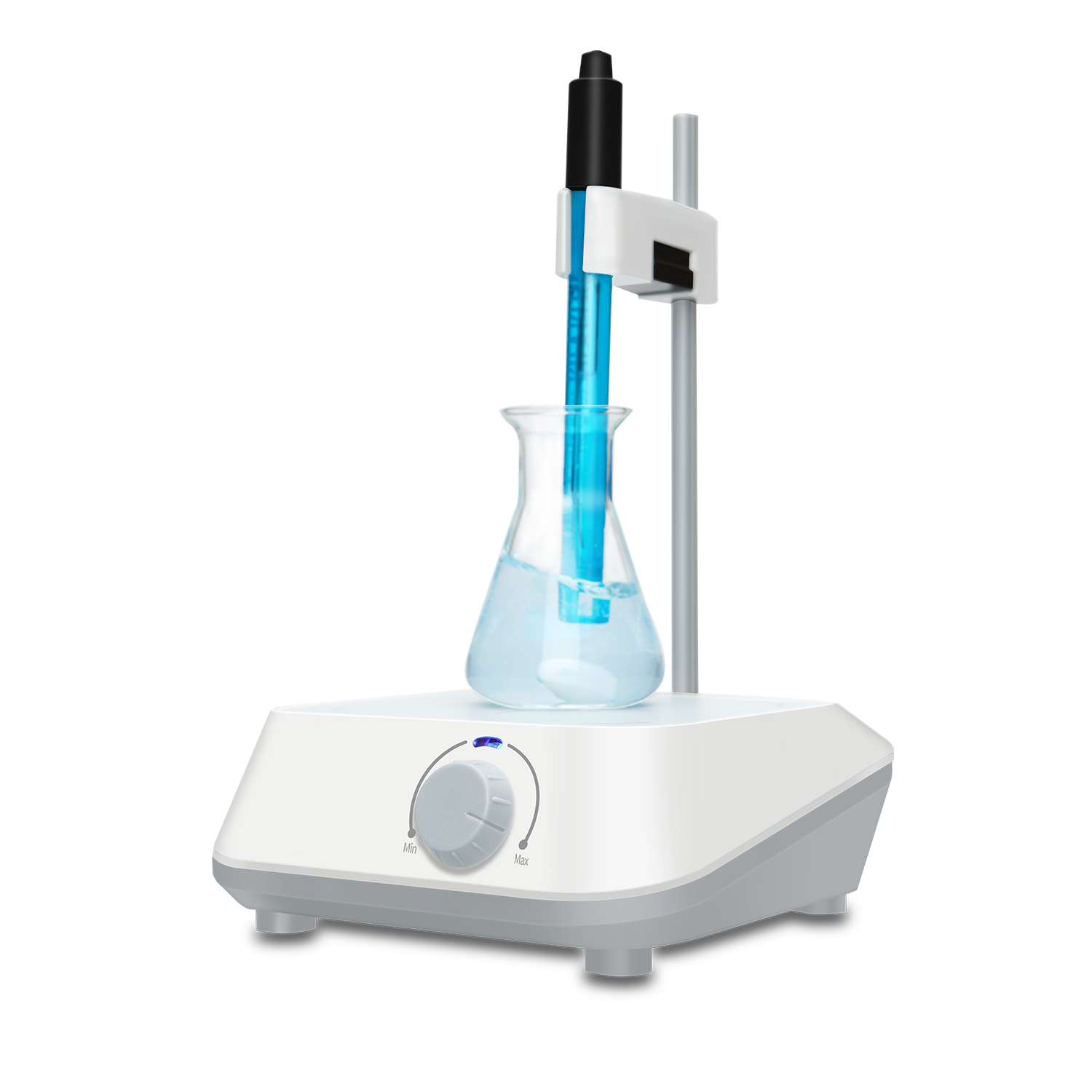

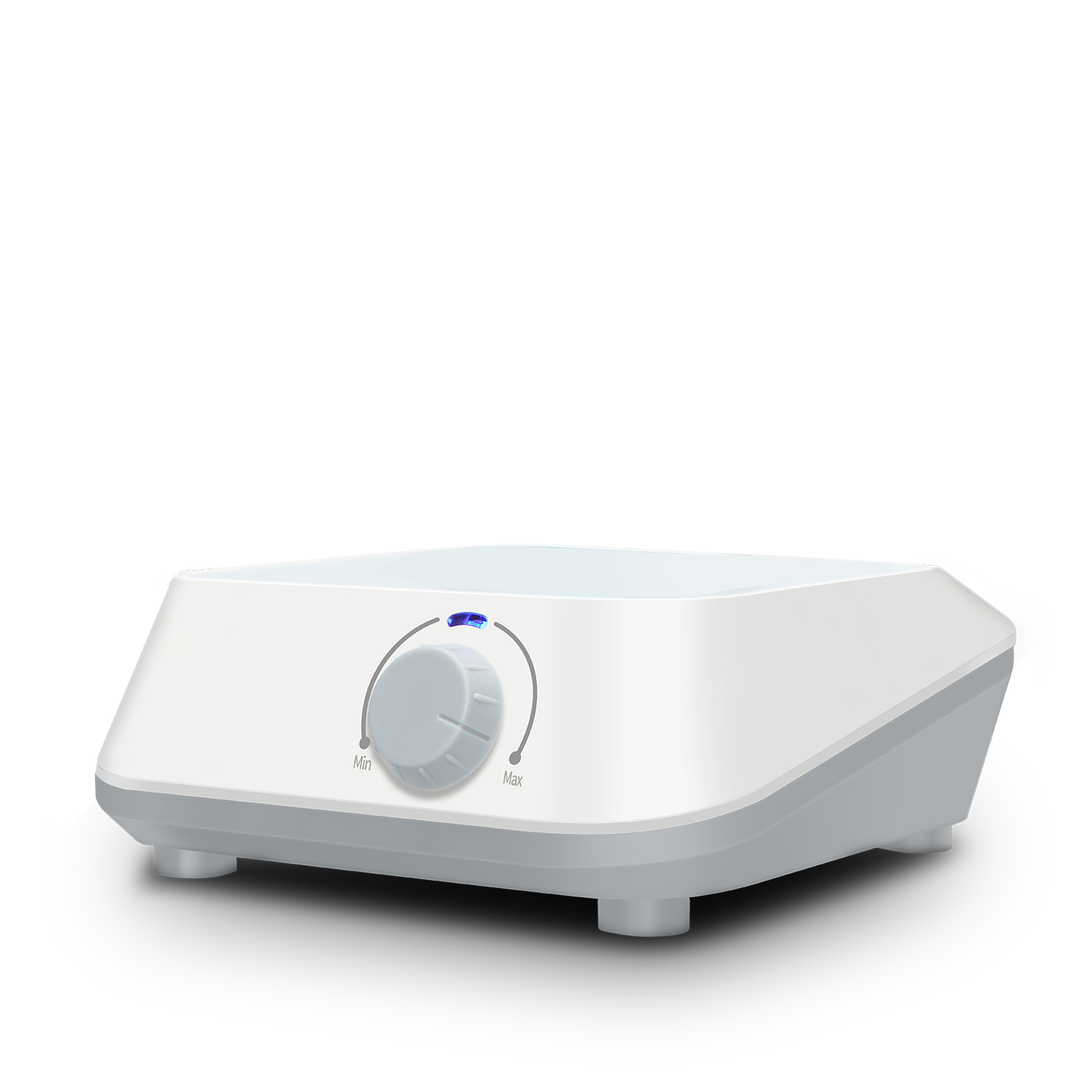

Square Plate Magnetic Stirrer
Square Plate Magnetic Stirrer with electrode holder has areliable designand a powerful stirring ability. lt is a basic and ideal tool for electrochemistrymeasurements or water & environment monitoring; drug or food analysis; liquidculture mixing, etc.Features
Compact design with small footprint, 12V voltageavailable for mobile labs.

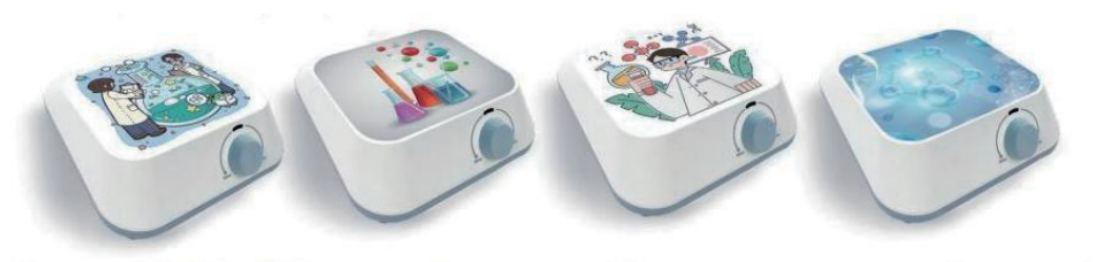

Square work plate supports 1.5L stirring capacity.Holder with clamp for pH electrode or other sensor.Default PET top provides excellent chemicalresistance.Extra colorful stickers satisfy DlY design by yourself.Maintenance free brushless DC moto.An economical choice of a reliable & durable magneticstirrer with an electrode holder for stable & powerfulstirring ability.

Specification EcoStir (1st Model) EcoStir (2nd Model)
Work plate size 120x115mm Ø120mm
Work plate material PET PET
Motor type Brushless DC Motor Brushless DC motor
Stirring position 1 1
Max. stirring quantity (H₂O) 1.5L 1.5L
Max. magnetic bar (length) 40mm 40mm
Speed range 300-2000rpm 300-2000rpm
Speed setting Scale scale
Protection class IP21 IP21
Motor output power 1.2W 1.2W
Power 7.2W 7.2W
Voltage, Frequency 100-240V, 50/60Hz or DC 12V 100-240V, 50/60Hz or DC 12V
Dimension [WxDxH] 150x144x54mm 150x145x50mm
Weight 0.3Kg 0.3kg
Permissible ambient temperature and humidity 5-40°C, 80%RH 5-40°C, 80%RH
