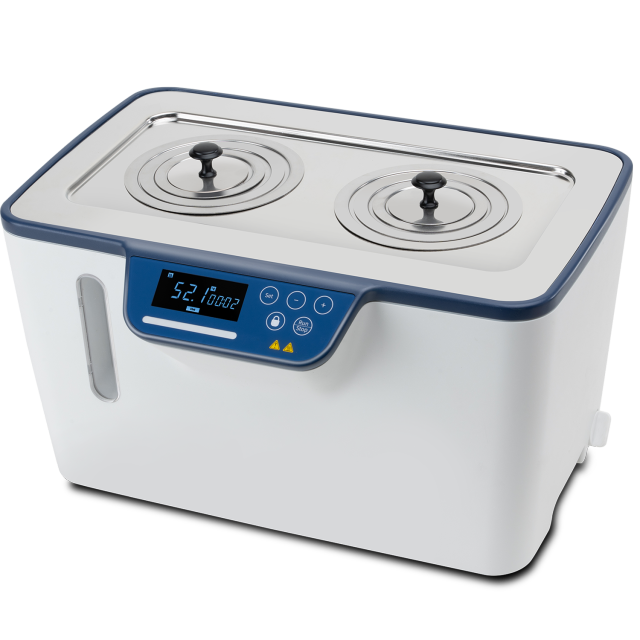

Water Bath

No.WB5-E

Water LevelViewing Windowfor Real-Time Monitoring
Indicator Light ClearlyDisplays Operating Status
Adjustable Pot Lid to FitDifferent Sample containers
Concealed DrainOutlet for a Clean andElegant Appearance
Sensitive and ConvenientTouch Buttons
LCD Screen Clearly Displays All Operating Parameters

  • Water Bath

Description

Features
Multiple Safety Protections

Dry-boil Protection: Equipped with a dry-boil temperature sensor to prevent damage from dry heating, ensuring safeoperation.
Safety Lock Function: Ant-miso peration design prevents accidental changes during operation, protecting both users and
equipment.
Plastic Outer Shell Protection: insulated and anti-scalding desien to prevent accidentalburns and enhance overal safetyOne-Piece Stainless Steel lnner Tank: Seamless, smooth design that is corrosion-resistant, easy to clean, and highlydurable.

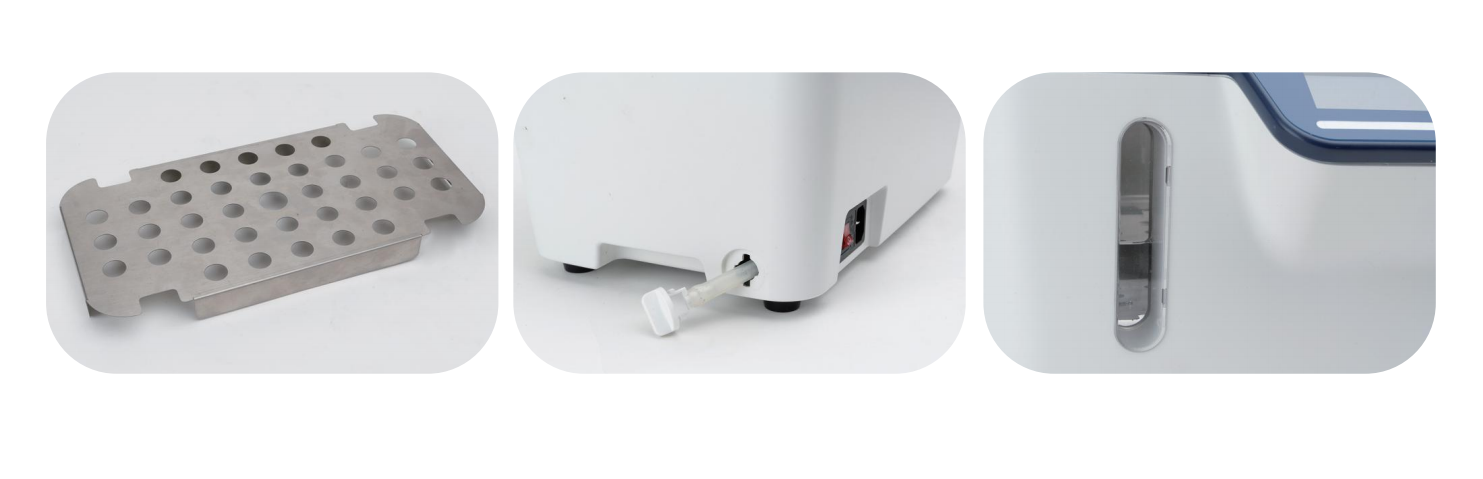

Water Level Viewing Window: A clear side window allows real-time monitoring of water levels for timely refiling, ensuringstable and reliable heating.
Compact and Elegant Appearance: Space-saving compact body fits various lab environments. Modern, minimalist design
enhances the aesthetic of any lab.
Precise Temperature Control & Rapid Heating: Temperature accuracy up to +1'c with minimal fluctuation-ideal forhigh-standard experiments. Heats 5L ofwater to 100'C within 30 minutes, improving efficiency.
LCD Display: Displavs time, temperature, and operating status-clear, intuitive, and easy to read.Smart Touch Operation: Replaces traditional buttons with a touch interface for smoother, more intuitive control. Touchfeedback with audible beeps ensures responsive operation.
Timer Function: Supports timed heating for worry-free automatic operation, meeting diverse experimental needs
Compatible with Various Containers: Adjustable lid design flexibly accommodates different experimental vessels
Reinforced Support Rack: Durable and hand-friendly, with strong load-bearing capacity.
Concealed Heating Tube: Maximizes internal space and is easy to clean.Hidden Drain Outlet: Sleek exterior design with easy-access drainage for convenience.
Inteligent Status lndicator: Flashing green light shows active heating. Once the set temperature is reached, the green lightstays on. When heating is complete, the indicator turns off automatically, clearly signaling operation status.

Applications

Suitable for use in university laboratories, medical institutions, pharmaceutical companies,food testing, and chemical analysisscenarios,it is an ideal constant-temperature heating device for processes such as physicochemical analysis, samplepretreatment,and constant-temperature reactions.

Specifications

Hole 2
Display LCD
Control Panel Touchscreen Button
Temperature range [°C] Room temp.+5~100
Temperature accuracy [°C] ±1
Temperature stability [°C] ≤±1
Temperature display accuracy [°C] 0.1
Time Setting 1min-99h59min
Bath volume [L] 5L
Overheating protection Yes
Anti-dry burn function Yes
Temperature sensor PT1000
Product Dimension [W×D×H] [mm] 390×290×227mm
Weight [kg] 3.9
Power [V] 110/220V, 50/60Hz
Heating power [W] 800
Ambient temperature [°C] +10~40
Ambient humidity [%RH] <80
